Genuine Mehler-Valmex® PVC (from Germany)
click
here to visit Mehler Website
Mehler-Valmex®
PVC is widely regarded in the industry as being the
premium quality PVC fabric available in the marketplace
today, and is the fabric of choice for most high quality
inflatable boat companies.
Genuine Pennel ORCA®
HYPALON (from France)
click
here to visit Pennel-ORCA Website
Pennel
ORCA® (France), along with Achilles®
Hypalon (Japan) is widely regarded in the industry
as being the premium quality Hypalon fabric available
in the marketplace today, and is the fabric of choice
for most high quality inflatable boat companies.
** Beware of similar
looking boats that are manufactured using
"no name" Asian Fabric ** |
| |
PVC |
HYPALON |
| Model |
|
|
| Retail
Price |
|
|
|
$1,449
($250 Saving)
Shipping
Included
(to $150)
**
Additional Discount Available If Shipping Is Not Required
**
|
$2,874
($725 Saving)
Shipping
Included
(to $150)
**
Additional Discount Available If Shipping Is Not Required
**
|
Seams |
Thermo Welded |
Glued
*Hypalon Cannot Be Welded*
*All Hypalon Boats Are Glued* |
| Fabric |
|
|
Transom Type |
FiberGlass
(FRP) |
FiberGlass
(FRP) |
| Availability |
|
Arriving
In Approximately Mid April - Reserve Yours Now
|
| Overall Length |
10 feet, 6 inches (320
cm) |
10 feet, 6 inches (320
cm) |
| Overall Width |
5 feet (152 cm) |
5 feet (152 cm) |
| Floor Length |
7 feet, 4 inches (224
cm) |
7 feet, 4 inches (224
cm) |
| Floor Width |
2 feet, 10 inches (86
cm) |
2 feet, 10 inches (86
cm) |
| Warranty |
7 year
* See FAQ Page For Details * |
7 year
* See FAQ Page For Details * |
| Available Colors |
Light
Grey / Blue trim
Light Grey / Red trim
Light Grey / Yellow trim
Light Grey / Medium Grey trim
Medium Grey / Light Grey Trim |
Light
Grey / Blue trim
Blue / Light Grey trim |
| Hull Configuration |
PVC Fabric
Inflatable Keel |
Hypalon Fabric
Inflatable Keel |
| Seats |
2 - Aluminum non slip |
2 - Aluminum non slip |
| Tube Diameter |
16.5 inches (42 cm)
|
16.5 inches (42 cm)
|
| Chambers |
3 main + inflatable
keel |
3 main + inflatable
keel |

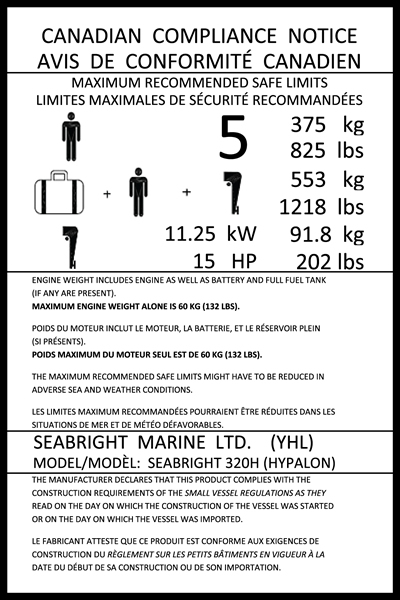

| Person Capacity |
5 |
5 |
| Cargo Capacity |
1218 lbs (553 kg) |
1218 lbs (553 kg) |
| Max Motor Power |
15 HP (short shaft) |
15 HP (short shaft) |
Max Motor Weight |
132 lbs (60 kg) |
132 lbs (60 kg) |
| Boat Weight - with High
Pressure Airdeck floor
** weight includes - boat, floor, oars,
seat
|
90 lbs / 41 kg |
90 lbs / 41 kg
( PVC Air Floor )
Hypalon Air Floor Not Available |
| Boat Weight - with

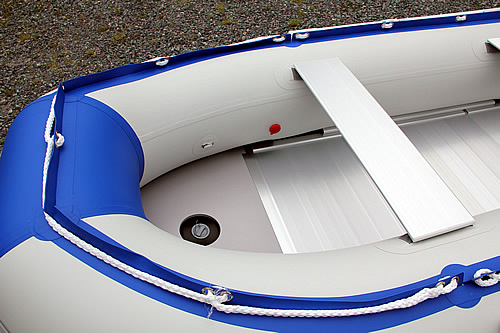

Sectional Aluminum floor
** weight includes - boat, floor, oars,
seats
|
117 lbs / 53 kg |
117 lbs / 53 kg |
| Available Floor Types |
High Pressure Airdeck
or
Sectional Aluminum
|
High Pressure Airdeck
or
Sectional Aluminum |
| Air pressure - boat
|
3.6 psi |
3.6 psi |
| Air pressure - inflatable
keel |
5.8 psi |
5.8 psi |

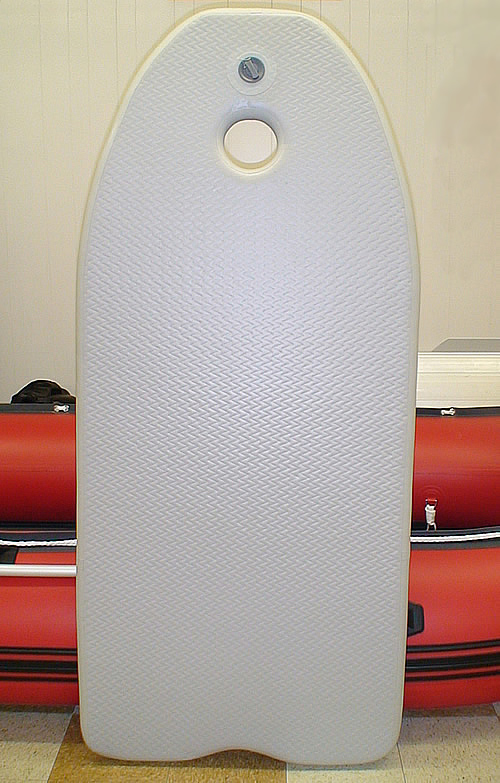

| Air pressure - high
pressure airdeck
|
10 psi |
10 psi |
| Features |
Thermo
Welded Seams (Heat Welded)
PVC Model Only - Hypalon Cannot be Welded |
| Genuine
Mehler-Valmex® 7318 PVC fabric
Standard Duty thickness (0.9 mm)
1000 grams / sq meter
click
here to visit Mehler Website
or
Genuine Pennel
ORCA® 820 HYPALON fabric
Standard Duty thickness (0.9 mm)
1140 grams / sq meter
click
here to visit Pennel-ORCA Website
|

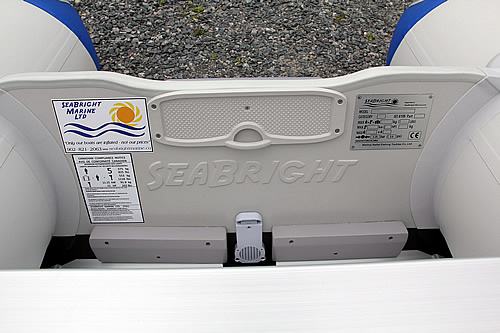

| Fiberglass
Transom (FRP) |
Double wall, high pressure
airdeck floor
or
Sectional Aluminum floor |
| Carrying handles |
| Bow handle |
| 4 Air chambers: (bow, port,
starboard, keel) |
| Seams: four overlapped |
| 2 Stainless steel Bow "D"
towing rings |
| Rubbing strake protection all
around |
| Hogging strip all around with
life line |
| Inpad and outpad for installation
of outboard motor |
| Inflatable keel and prominant
"V" shaped hull |
| Boat bottom protected by rubbing
strake |
| Tube bottoms protected by heavy
duty rub guards |
| Self bailing one way drain plug
in transom |
| Safety valve to prevent tube
rupture |
| 2 Internally sealed bulkheads
to equalize tube pressure |
Standard Equipment
Repair kit, Carrying Case, Oars, Pump, 2 Aluminum
Seats |
